심전도 신호 생성기(ECG Signal Generator) 제작

이형철 2015-03-27 (금) 10:20 10164 1

웹 아카이브(2016-10-16 기록)에서 복원한 글입니다. 일부 이미지나 첨부파일이 빠져 있을 수 있습니다.

Arduino와 쓰다 버린 전극, 저항, 캐패시터, 이번에 구입한 케이스를 이용해

심전도 생성기를 만들었습니다.

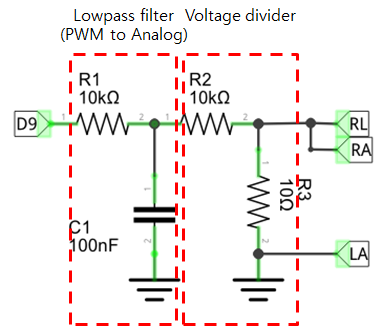

회로도

아두이노 소스코드 (timeone 라이브러리 필요)

#include "TimerOne.h"

const float freq = 7812.5;

const byte pin = 9; // PWM DAC

const short data[] = {245,247,248,250,251,253,256,258,260,263,265,268,271,275,278,

280,281,282,284,285,286,287,289,291,293,294,296,298,300,302,304,305,307,308,310,

312,313,315,316,317,317,318,319,320,321,321,321,320,319,319,318,317,317,316,315,

315,314,314,313,312,311,310,309,308,306,305,304,303,302,301,300,299,298,297,296,

294,292,291,289,288,286,285,284,282,281,280,278,277,275,274,272,270,268,266,264,

262,260,257,255,253,251,248,246,245,244,243,242,241,240,239,238,238,237,236,235,

234,234,234,235,235,235,236,236,236,236,236,236,236,236,236,236,236,237,238,238,

239,239,240,240,241,241,241,241,241,241,241,240,240,239,238,237,236,236,235,234,

233,231,230,228,226,225,223,221,216,205,183,151,138,126,158,174,188,201,224,244,

255,267,281,309,336,364,521,561,618,637,648,660,673,770,783,796,804,828,850,873,

895,951,961,972,949,860,863,824,763,704,702,556,564,473,433,406,249,225,88,94,50,

7,8,15,22,29,40,59,68,73,77,81,85,92,99,107,121,135,150,163,175,189,200,209,214,218,

223,229,234,241,254,258,260,261,263,265,266,266,266,265,264,264,263,262,262,261,

260,260,259,258,258,257,257,256,255,254,254,253,252,252,251,250,250,249,249,249,

248,248,247,247,247,246,246,245,245,244,244,243,242,242,241,240,240,240,240,240,

240,240,240,240,240,240,240,240,240,240,240,240,240,240,240,241,241,241,241,242,

242,242,242,243,243,244,244,245,245,246,246,247,247,248,248,249,249,250,251,252,

253,254,255,257,258,259,260,261,262,263,264,266,267,269,270,272,273,275,276,278,

280,281,283,285,287,289,291,293,294,295,297,298,299,300,302,303,305,306,308,310,

311,312,313,314,315,317,319,321,323,325,327,328,330,332,333,335,335,336,336,337,

337,338,338,339,339,339,339,339,339,339,339,338,338,337,336,336,335,335,334,334,

333,333,332,331,331,330,330,329,328,328,326,325,323,322,320,318,317,316,315,314,

312,311,310,308,306,305,303,302,300,298,296,294,292,290,288,287,286,285,284,282,

281,280,279,278,276,274,272,270,268,267,266,264,263,262,260,259,258,257,256,255,

254,253,252,251,250,249,248,247,247,248,248,249,249,249,249,249,249,248,248,248,

247,247,247,247,247,247,247,247,247,247,246,246,245};

const short num = sizeof(data) / sizeof(short);

void setup(void)

{

pinMode(pin, OUTPUT);

Timer1.initialize(128); // 10 bit dac, 7812.5 Hz

}

void loop(void)

{

for(int i = 0; i < num; i++)

{

Timer1.pwm(pin, data[i]); // create a sawtooth

delayMicroseconds(1000000 / num); // 1ms

}

케이스

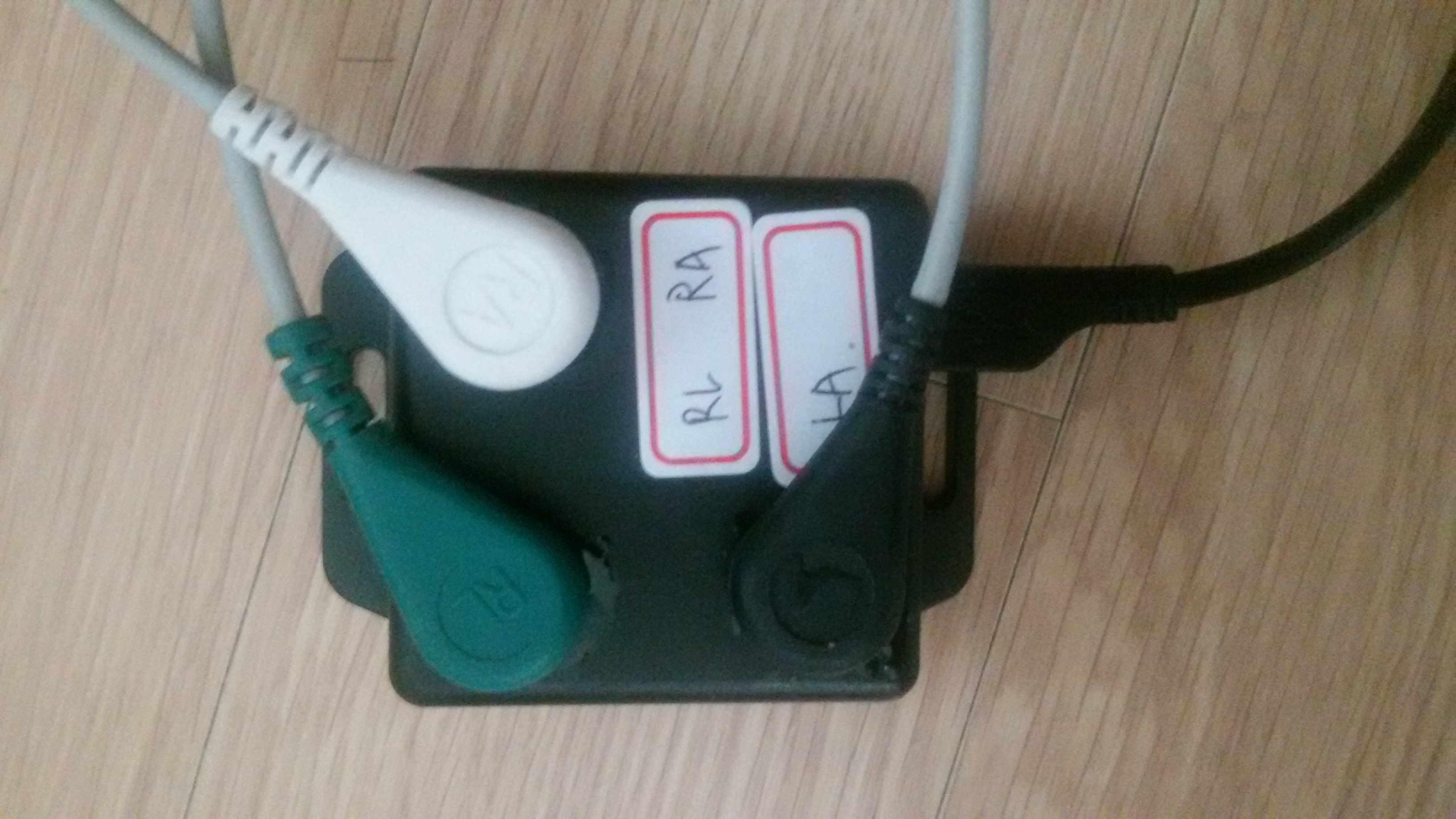

케이스에 구멍을 뚫어 철사를 꺼내고 쓰다버린 ECG 전극에 납땜한 후 에폭시 레진으로 고정

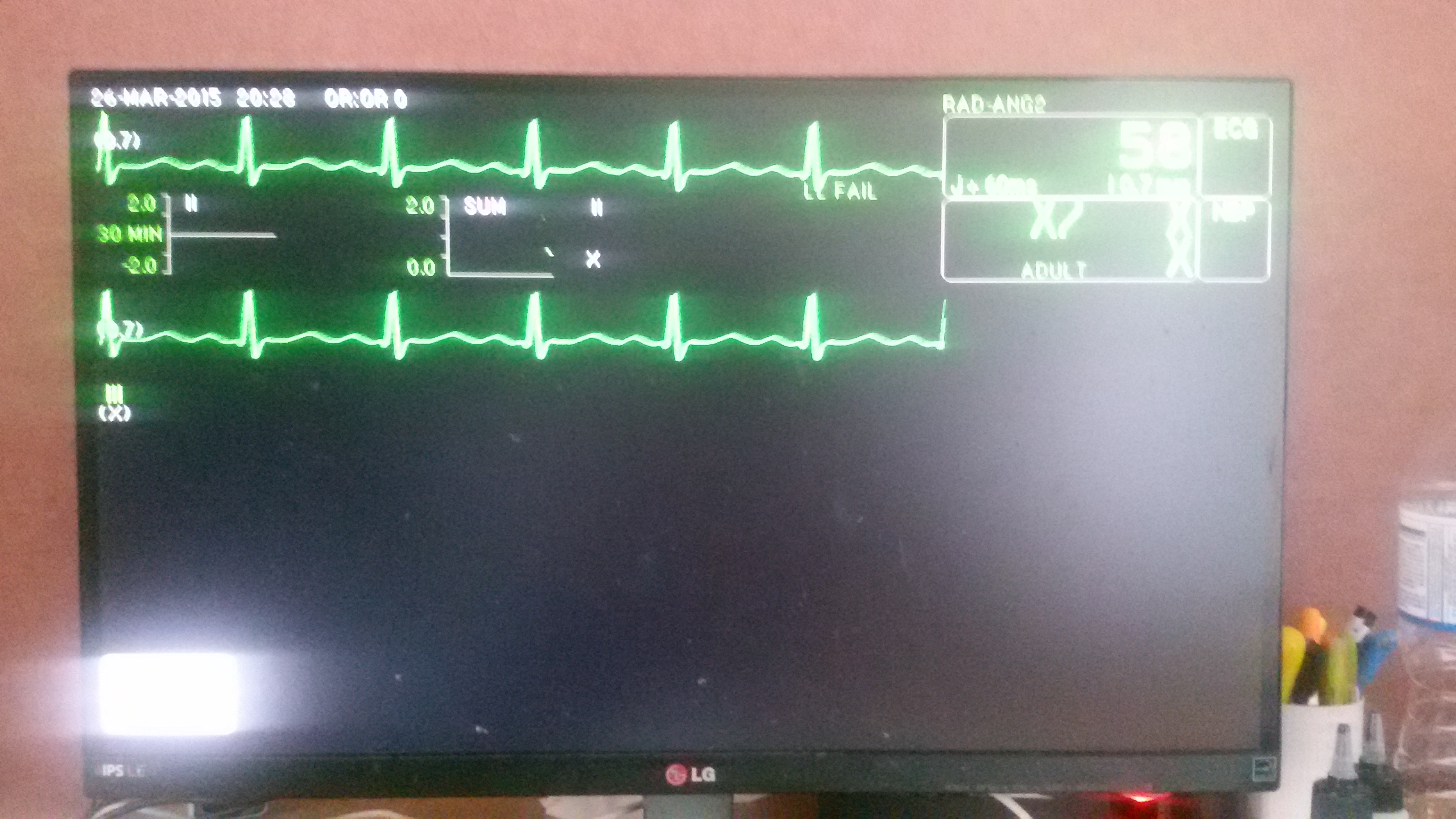

실행 결과
